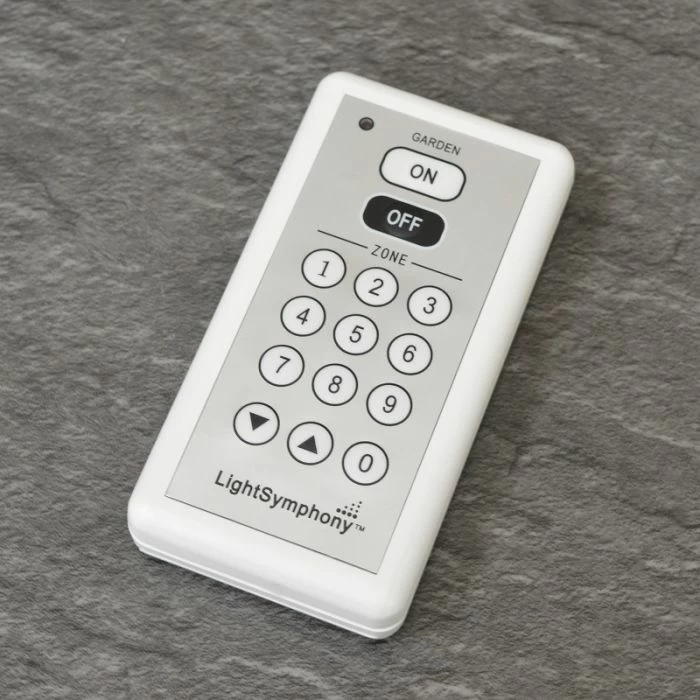

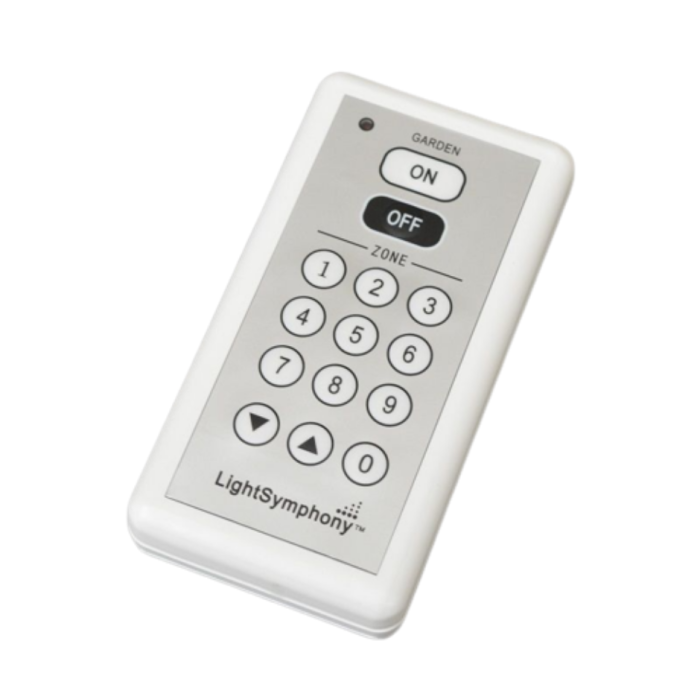

The 9 Channel RF Remote Control Handset RF provides complete and simple control over an entire lighting scheme with a 1000 metre walk-about range (to be used with lighting control modules). It is simple to use, and its splash-proof, easy clean, brushed aluminium effect keypad lends itself to outdoor life. Any number of handsets can be used together. 16 ‘system-codes’ are selectable to avoid interference with neighbouring systems. The handset employs the very latest narrow-band FM radio technology to achieve a best-in-class wireless range while achieving superb rejection to interference. The handset is also a commissioning tool, providing ‘lid-on’ programming of other Light Symphony components.
|
Using the master ‘garden on/off’ feature, all Lighting Control Module (LCM) outputs can be switched together. It also provides 9 individual ‘Area’ buttons, which can be used in different ways, depending on the size of the project; SMALL : Individual control of 1- 9 lighting circuits, as shown above. MEDIUM : Control of up to 9 ‘Areas’, where individual LCM output’s are grouped together to create lighting ‘zones’. LARGE : Scene control. Up to 9 complete lighting ‘moods’ may be stored and recalled |
|---|---|
|
1000 metre wireless range line-of-site |
|
IP44 (splash-proof), wipe clean Grey ABS, colour RAL7011 |
|
135x70x25mm |
|
434.075MHz Narrow Band FM. |
|
Security channels 1-16. |
|
2x AA batteries (for clock backup) |
|
EN220300, EN500811 To EN500821 |
