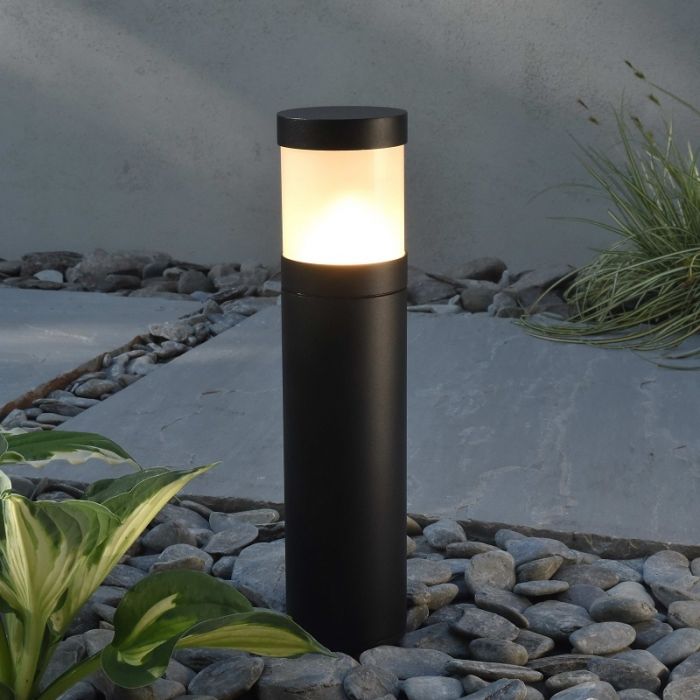

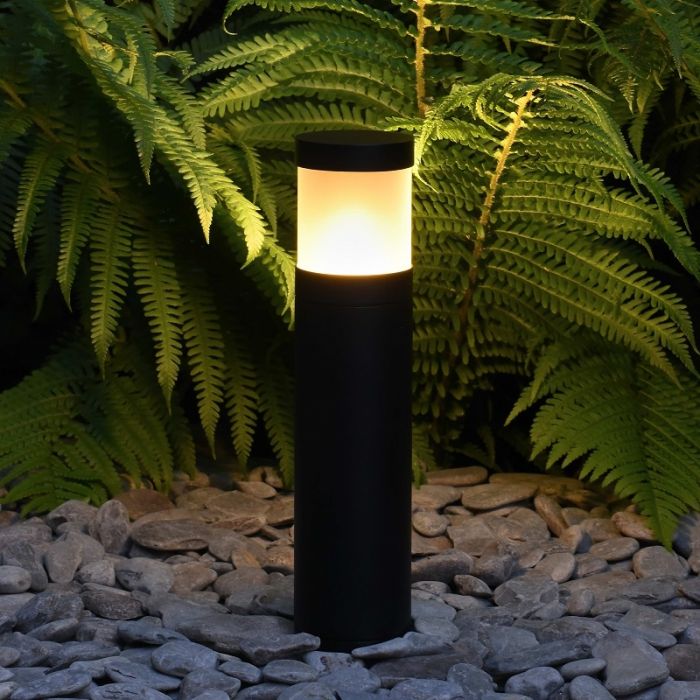

The Elipta Compact Bollard Light (black) is a contemporary outdoor garden light that uses a 7 watt E27 LED Candle lamp – recommended for driveway and path lighting, especially if they are timer-operated for long periods, which helps with energy consumption and the need for a lamp replacement. This garden bollard light comes with a finned spike for installation in soil and gravel.
|
Black powder-coated aluminium is a traditional recessive colour choice for garden settings |
|---|---|
|
IP66 |
|

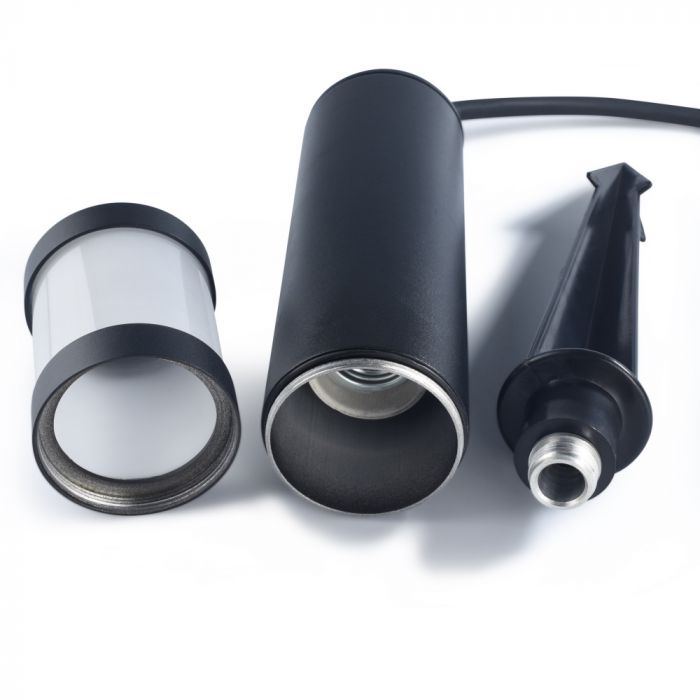

Machined from solid metal tubing with stainless steel spike. Frosted polycarbonate diffuser is framed by top cap and screw-on base ring which allows the top to be unscrewed for easy lamp replacement. |
|
240v |
|
7 watt LED Candle lamp . Order lamps separately |
|
Pre-wired with 2m rubber cable. 240v versions can be connected into a mains junction box or a T9969 underground joint kit. Ensure soil is loose enough for spiking into the ground: forcing the spike into hard soil may damage the fitting.
Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD. Where a garden lighting installation of more than 12 spike mount or recessed lights per circuit is proposed, we suggest the installation of 12v units with transformers, which results in a significantly higher fault tolerance and reliability in the total installation |
