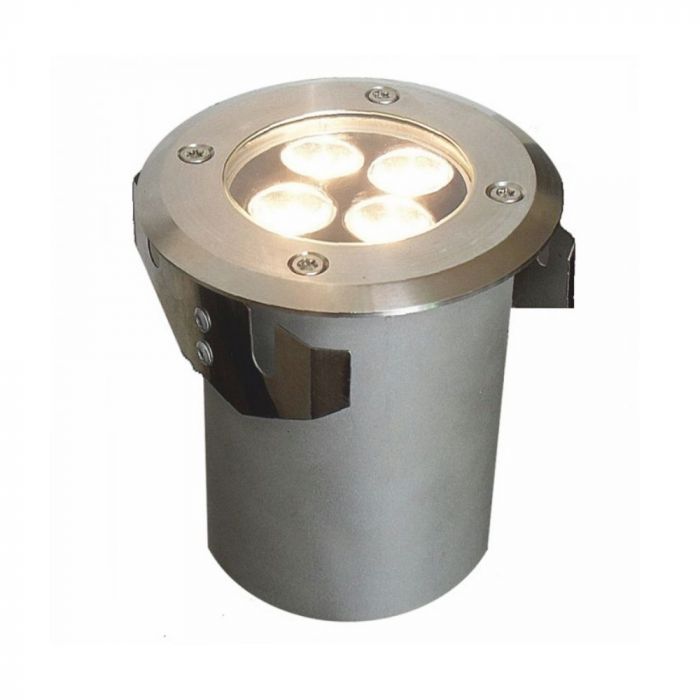

Lumilux is a recessed uplight with a chamfered 316 stainless steel top with a brushed finish and 4 warm white led’s providing light output equivalent to a 35w halogen lamp. It has a frosted lens and provides a focused 30 degree beam for uplighting small trees and grazing facades or walls. Lumilux is designed for easy installation with the minimum of tools with the Patilo range of Plug&Play transformers, connectors, extension cables and junction boxes.
IP rating |
IP68 with IP44 cable connector |
Construction |
Aluminium body with spring locating clips, plastic mounting sleeve and chamfered 316 stainless steel top with brushed finish secured by 4 torx screws. |
Input |
12v AC 11.5w max: requires power from a Patilo Plug&Play transformer |
Light source |
4 warm white 3000K CREE led’s |
Light output |
340 lumens (EQUIVALENT TO 35W HALOGEN LAMP) |
Beam angle |
30 degrees |
Installation |

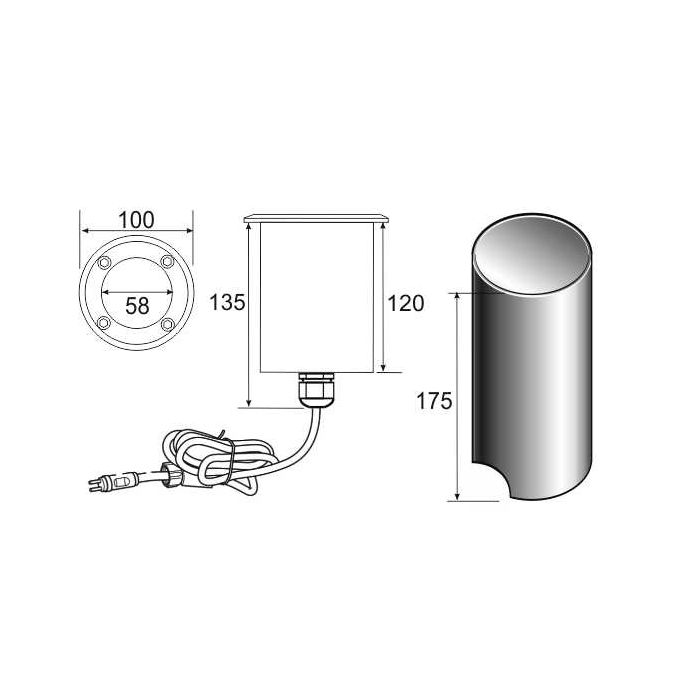

5m input cable with male IP44 2-pin input connector to plug into a Plug&Play transformer, extension cable, connector or junction box : an IP68 connection may be achieved by using either the GLWJB IP68 junction box or GLWCC waterproof cable connector. Spring clip locates in a 85-95mm hole drilled in decking and paving or the plastic mounting sleeve supplied for installation in soil or masonry. |
Accessories
|
For use with the Plug&Play transformers, connectors, cables and junction boxes. |
