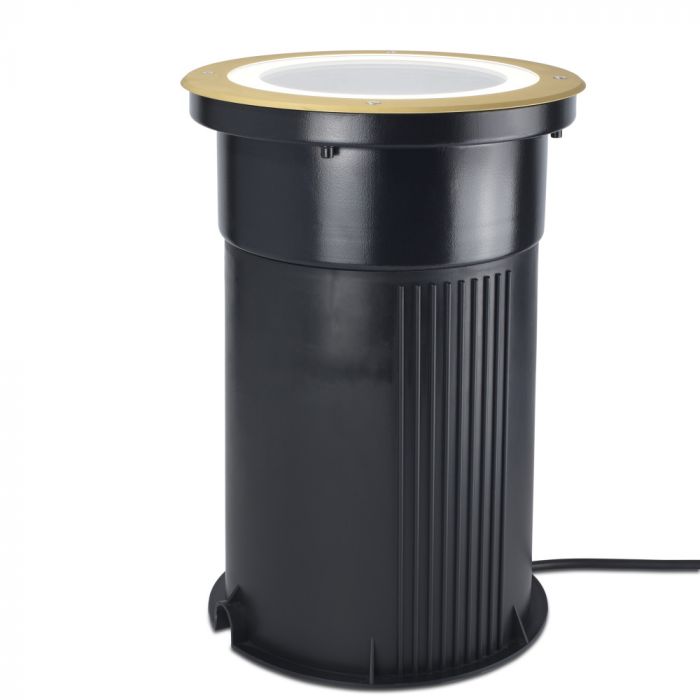

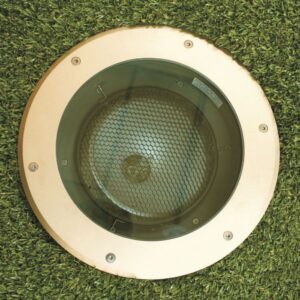

The Elipta Olympus 70 recessed adjustable uplights combine a cool top lens, long lamp life and energy efficiency for uplighting trees from lawns or paving. The Olympus 70 provides a powerful 36 degree uplighting beam, using a single-ended metal halide lamp, while keeping a typical top lens temperature of under 70 degrees C – so the Olympus can be used even in walkover areas to uplight trees with an open canopy and branch structure from directly below.
The lamp and reflector assembly is mounted on an adjustable cradle so the beam can be tilted up to 20 degrees from vertical to achieve the desired result. The dark grey non-reflective interior enables less light refraction through the lens to give away its position in the landscape. The Olympus 70 has an upper compartment with a separate top lens insulated by an inner second lens from heat generated in the lower compartment which houses the lamp and control gear.

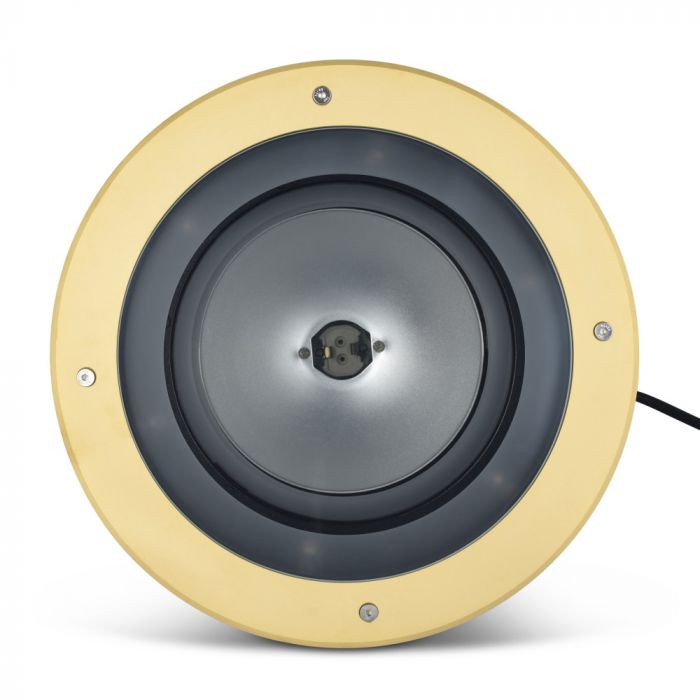

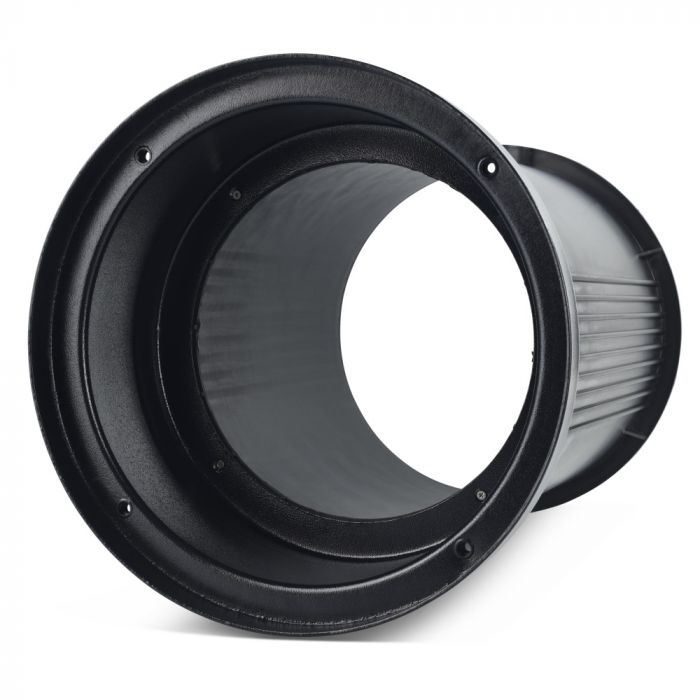

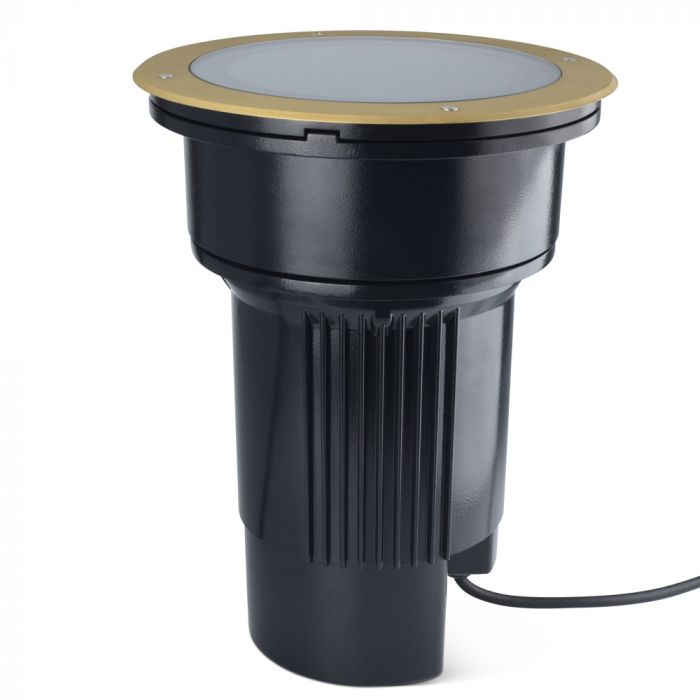

This garden light also has a textured brass lens rim, a cast aluminium body and a polymer sleeve for recessing into the ground. A sandblasted brass top ring is used for discreet installation in paving, especially in heritage projects where stainless steel may look too modern. Stainless steel, green and black tops are also available to purchase.
An Elipta Olympus Glare Louvre is also available as an accessory: this fits inside the top compartment over the lower lens to limit visibility of the light source in traffic or pedestrian areas. To facilitate the removal of screws for future relamping or other maintenance, use copper grease to the threads of all screws being fitted for retention of bezels, grills or other top plates or retaining rings. Copper grease resists degradation because of the heat and protects against difficulty in removing screws, especially where stainless steel screws are fitted with aluminium parts. It can also be used on screw threads of screw-off bezels or glare shields. Ensure surplus is cleaned off with a solvent to stop staining in use. Order lamps separately via our website.
|
Textured Brass top |
|---|---|
|
IP67 |
|
Cast aluminium body with borosilicate glass lenses, stainless steel top ring and plastic soil sleeve |
|
240 volts |
|
70w single-ended ceramic type CDMT70 3000K metal halide lamp is recommended for purple/red/yellow/green foliage trees and combines long lamp life and colour stability. HQIT70K4 4000 degree K lamp gives cooler lighting effect suitable for trees with blue/grey foliage such as some pines & cedars. Order lamps separately. |
|
Direct burial in the ground: prewired with rubber cable and 20mm IP68 gland for connection to mains supply via a separate underground joint kit (order T9969 separately). Provide 300mm depth of shingle drainage below the uplight: do not use in waterlogged ground.
Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD. Where a garden lighting installation of more than 12 spike mount or recessed lights per circuit is proposed, we suggest the installation of 12v units with transformers, which results in a significantly higher fault tolerance and reliability in the total installation |
|
E9600L black glare louvre |
