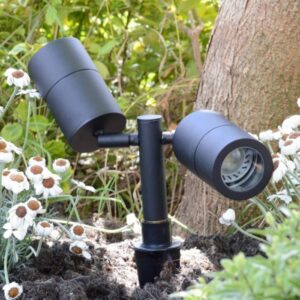

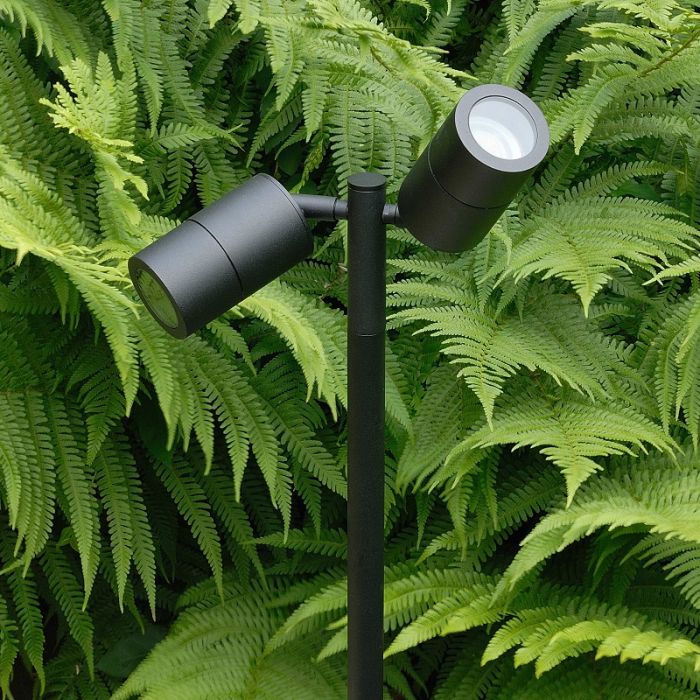

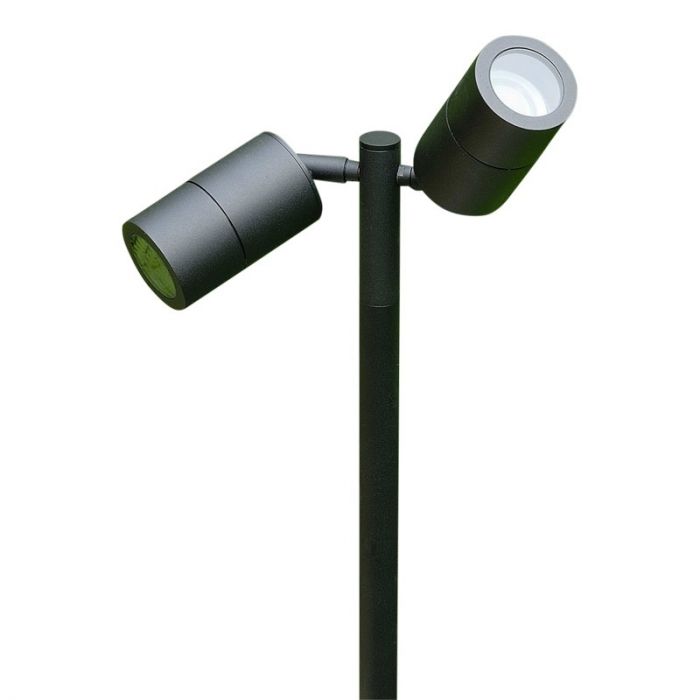

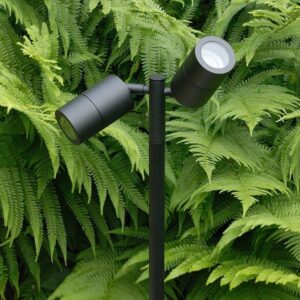

Elipta’s 12v Pole Spot Duo is a twin pole-mounted outdoor garden spotlight ideal for uplighting trees and taller shrubs from amongst medium-height planting, spotlighting features at ground level or washing light across a lawn, path or gravel landscapes. It is 40cm tall in height. Has a fully adjustable knuckle joint, IP65 rating and prewired with a twin core 1.5mm HO7 RNF rubber cable. There’s added flexibility of working as a twin spike spot at a low level by simply screwing the ground spike directly to the upper section of the fitting. There is space inside the spotlight body to fit an Elipta honeycomb glare louvre or a clip-on MR16 frosted lens or colour filter accessory onto the front of the lamp. A flush glass lens sheds water and leaf litter and is easy to clean. Pole Spot Duo is supplied with a 20cm polycarbonate spike mount, which can be removed and replaced by an Elipta Brass Surface Deck Mount (Black) and the Elipta Tri-Spike High Stability Ground Spike which provides firm positioning in loose soils order required mount.
|
Black powder coated aluminium |
|---|---|
|
Weatherproof to IP65 |
|

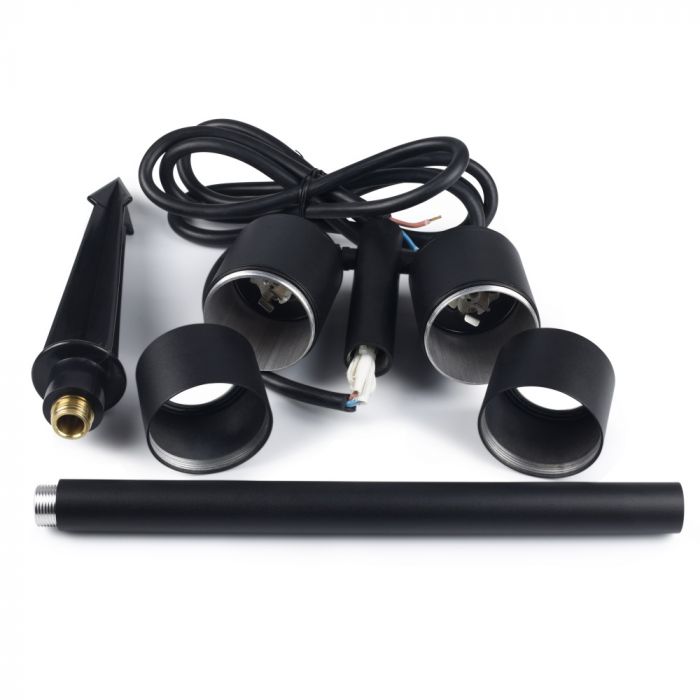

The spotlight body is made from solid metal tube and mounted via adjustable knuckle joint on a 40cm tubular stem bottom cable entry:
Pole Spot Duo is supplied with a 30cm poly carbonate spike mount, which can be removed and replaced by a surface/deck mount R3510B and the high-stability E6002 Tri-Spike which provides firm positioning in loose soils order required mount. Unscrewing the front bezel makes it easy to extract and change the lamp without tools. |
|
12 volts – requires power from a remote transformer |
|
MR16 LED lamp – Order lamps separately
Maximum size of MR16 70mm x 45mm, not including pins |
|
Prewired with 1.5m HN7 RNF rubber cable. Order T9962 cable joint kit for connection to low voltage cable from a garden lighting transformer. Wire spike spotlights to transformer with 2.5mm² ground burial 2 core low voltage cable available in 50m (T9912) or 25m (T9913) packs: use T9910 4mm² cable for longer runs. |
|
58mm honeycomb glare louvre
Clip-on MR16 frosted lens Clip-on MR16 Colour filters 30cm pole-extensions Black Polycarbonate Mounting Spike Tri-Spike High Stability Ground Spike Brass Surface / Deck Mount – Black |
