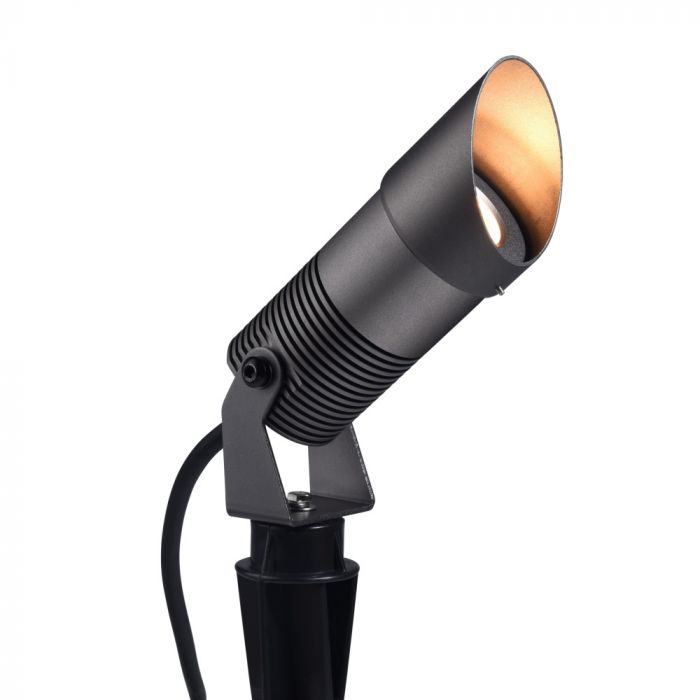

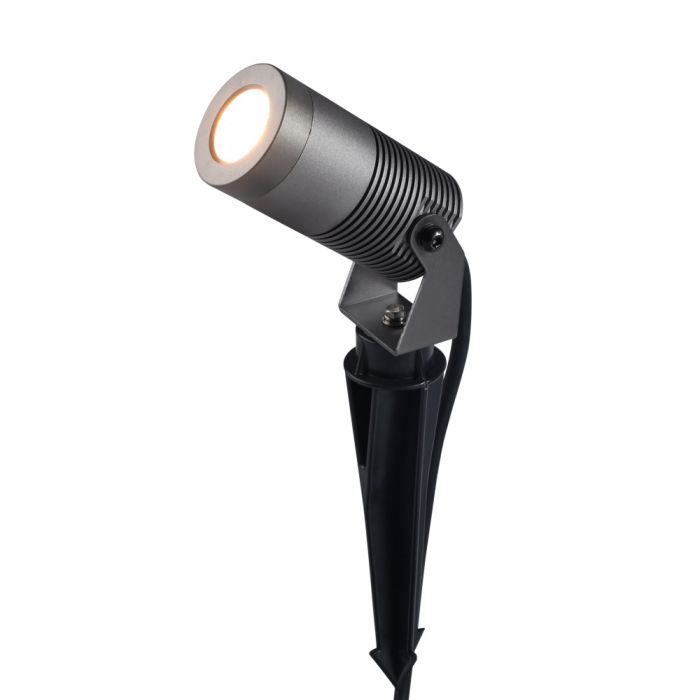

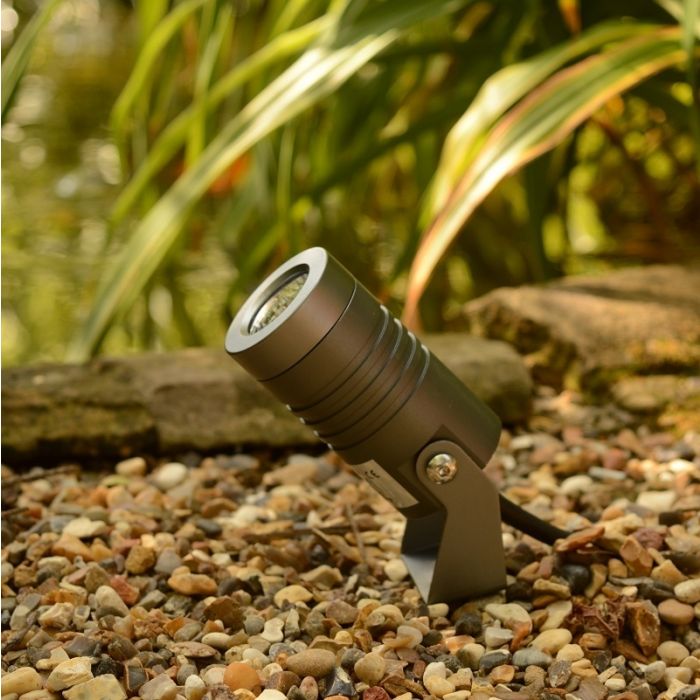

The Elipta Spike5 is an adjustable spike-mount 240v led outdoor spotlight with an anodised anthracite aluminium body. It has a high-efficiency 5w COB led providing light output of 400lm in a focused 38 degree beam for uplighting trees and focal points.
240v Spike spotlights need their own circuit from an existing or new fuse box. The box must be protected by a residual current device (RCD) and controlled with a double-pole isolating switch. As a general rule of thumb, the armoured cables need to be run underground- at least 450mm with weatherproof junction boxes. Use an electrician qualified under ‘Part P’ building regulations to install any mains electricity outdoors who will certify the work properly.
|
Anodised Anthracite |
|---|---|
|
IP67 |
|
Black diecast aluminium with an anodised anthracite finish |
|
240v |
|
5w |
|
400lm |
|
38° |
|
2700K |
|
Approximately 50,000 hours |
|

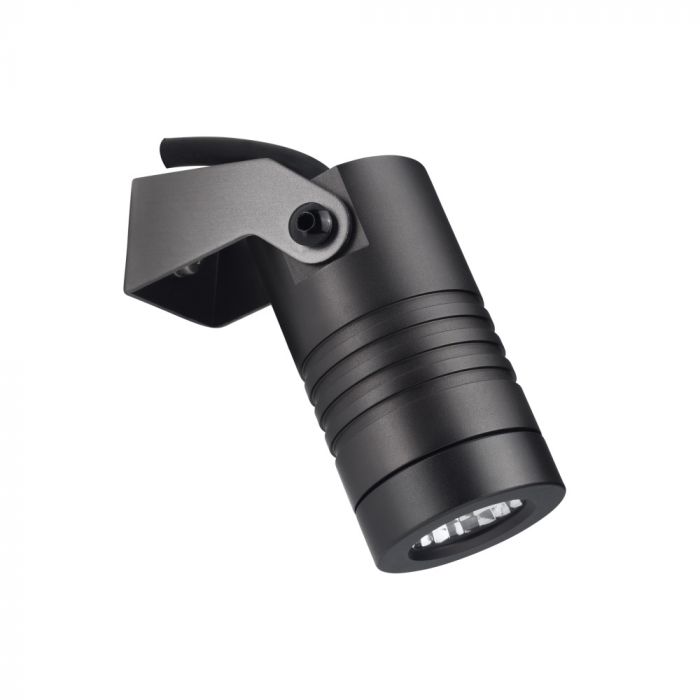

Stirrup bracket mounts on walls or the ground spike supplied. A 2m input cable is provided for connection to the mains supply via a separate weatherproof junction box or underground joint kit (not supplied).
Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD.
|
