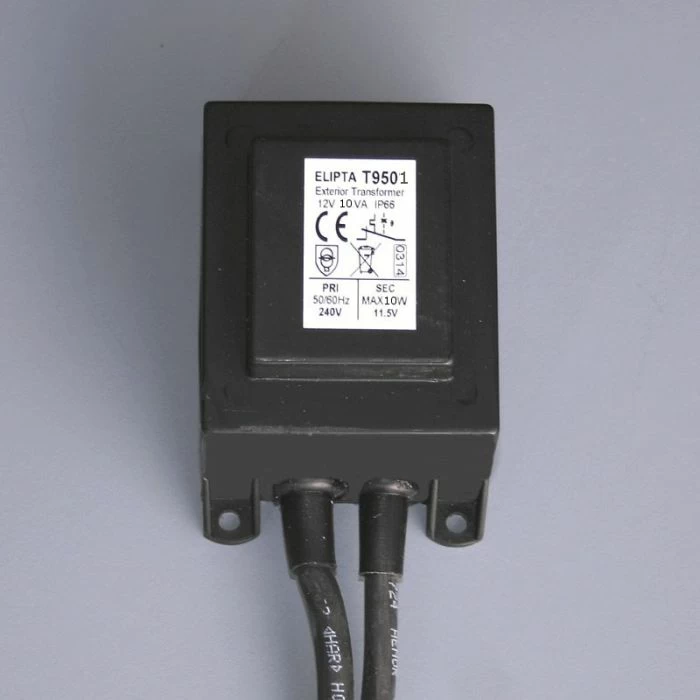

The T9501 Elipta surface-mount 12v weatherproof wire-wound (magnetic) transformers is resin-potted into black polycarbonate boxes, for mounting on a walls or post hidden behind planting and landscape features, under decking or in outbuildings. Each transformer has a self-resetting thermal cut-off to protect against overload, 1m mains input cable and 60cm 12v output cable for connection using seperate weatherproof junction boxes (cable & connections carrying different voltages must be segregated). Both cables enter the case at the same end, allowing neat connection into junction boxes below when mounted on a post. The T9501 can be mounted to a 3″ fence post or T9599 Stainless steel spikes are optional.
|
Black |
|---|---|
|
H 54mm W 53mm D 64mm (fixing centres 43mm x 72mm) |
|
IP66 |
|
Wire wound (magnetic)transformer resin-potted into a black polycarbonate box, with a 1 m mains input cable and 60cm 12v low voltage cable |
|
240v input |
|
10va. Will power up to 10w of lights but we recommend maximum of 80% load |
|
Connect 1 metre mains cable into a weatherproof junction box and 60cm low votage cable with a T9962 cable joint kit |
