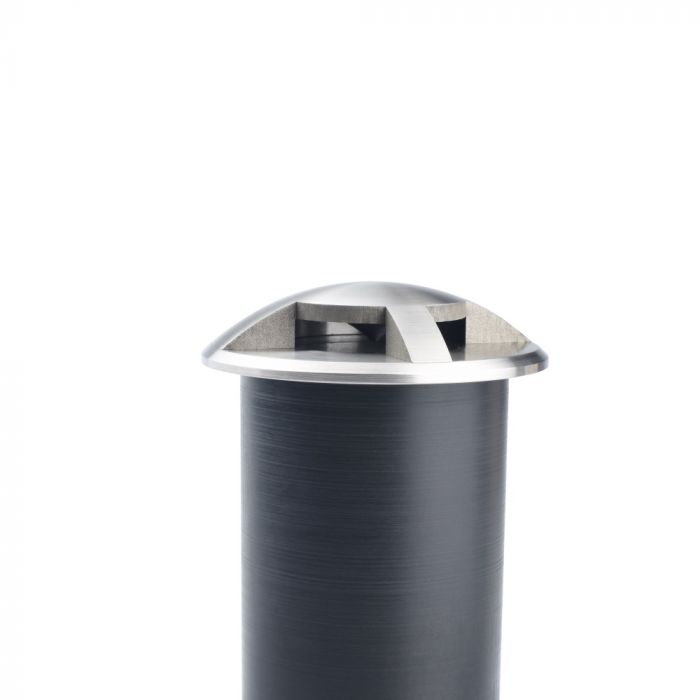

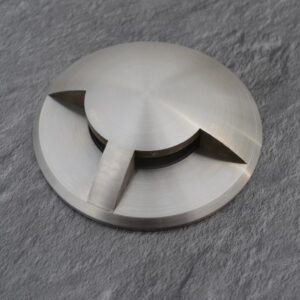

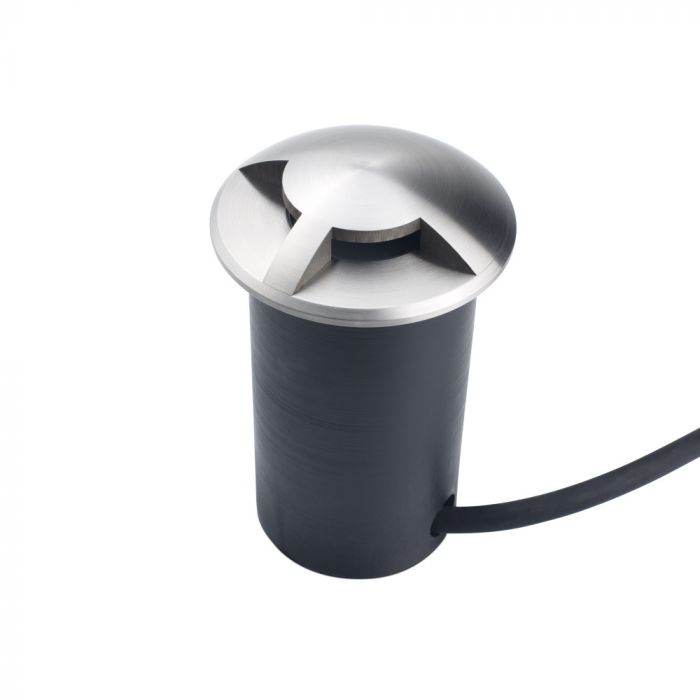

The Elipta Waymarker 180 (stainless steel) is a stylish 12v recessed light with 2 windows providing 180 degree lighting to one side of the top plate. It is useful where you want to cast a corona of light across a path or drive edge without casting light backwards onto planting or other finishes behind. The garden light is located by an “O” ring on the body into a sleeve tube so that no external screw fixings are visible. It may also be used as a deck light.
|
Smart 316 grade stainless steel is a popular choice for modern garden settings |
|---|---|
|
IP65 |
|
Top plate is attached to tubular aluminium body which unscrews into 2 halves without tools for easy lamp changing. 2m cable via rear entry cable |
|
12v |
|
MR16 LED lamp – 38 degree beam for wider staircases or 60 degree beam for wider coverage of a narrower staircase, path or patio. MR16 warm white L.E.D. lamps include 3w or 5w for lighting across wider steps; 50,000 life and low energy consumption make them a popular option |
|
The plastic sleeve is built into the wall during construction or retrofitted into a hole cut with a coring bit: the light pushes into the tube, where it is held firmly in place by an o-ring, leaving a front plate with no visible fixing screws. Suitable drainage should be provided below each fitting to prevent water logging. Waymarkers should not be installed in ground subject to water logging.. Connect input cable to cable from transformer using T9962 cable joint or T9963 cable splice kit. |
