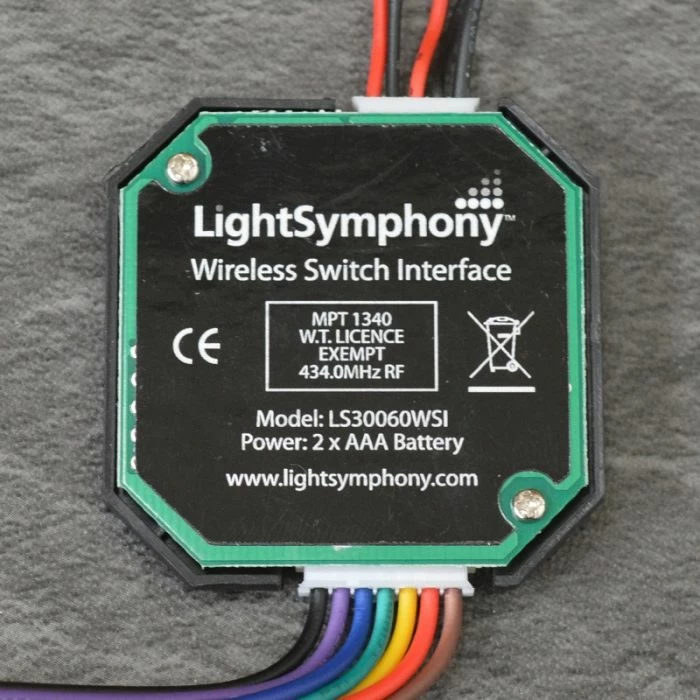

This Light Symphony wireless wall switch module provides the convenience of a standard wall switch without the mess of installation. It can provide up to 4 remote control circuits and can be fitted inside the back box behind your switch. The internal module provides 1000 metre line-of-site range. Each switch can be programmed to control the whole garden or a selected area. The module can learn the programming wirelessly from the remote control (lid-on setup) or can be configured manually using the internal push-button.
|
Just fit the batteries and the wireless switch is ready for use. The unit is factory configured to switch Area’s 1 and 2. Any Lighting Control Modules configured to these area’s will respond. The switch can quickly be re-programmed to control different area’s or the whole garden together (garden on/off) using the remote control. The slim (4mm) internal module can be fitted behind a switch-plate of your choice. It’s compatible with any 1 to 4 gang (2-way) switch-plate and powered by 2 x ‘AAA’ batteries. |
|---|---|
|
1000 metre wireless range line-of-site |
Input: |
1 to 4 switch inputs suitable for 2-way rocker switches or N.O. push buttons |
|
45 x 45 x 4mm |
|
Security channels 1-16. |
|
2x AAA batteries |
|
EN220300, EN500811 To EN500821 |
