The Outdoor Repeater with Gate Interface can perform two separate functions;
1. Interfacing to electric gates or other sensor to provide automated lighting control when vehicles approach. When triggered, it wirelessly signals to the Lighting Control Modules an on-time of 1 to 30 minutes. It contains an adjustable dusk sensor to prevent trigger during daylight.
2. The signal repeater echos commands received from any of Light Symphony’s wireless transmitters. Up to 5 repeaters may be used together to extend Light Symphony’s range by 1000 metres radius (line-of-sight) each.
|
The Gate-Interface provides a wide voltage, isolated input which can be connected to a variety of ‘triggers’ such as an electric gate controller or driveway light-beam detector. Using this interface, the lighting can automatically be switched on for a short time when, for example, a vehicle approaches. Its on-time is adjustable from 1 to 30 minutes and it includes a dusk sensor to prevent unwanted triggers in daylight hours. It will not interfere with the user’s control, meaning that lights that have been switched on manually will not be affected. It’s 1000 metre* signal-repeater extends Light Symphony’s wireless range for larger systems. |
|---|---|
|
Additional 1000 metre wireless range line-of-site |
|

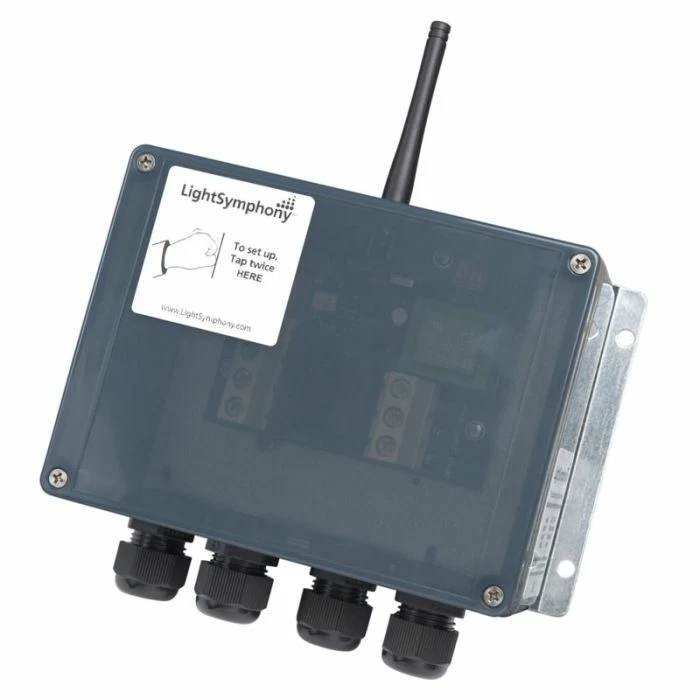

IP66, UV stable, ABS plastic with non-penetrating wall-mounts semi-clear lid & neoprene o-ring. Colour RAL7011 |
|

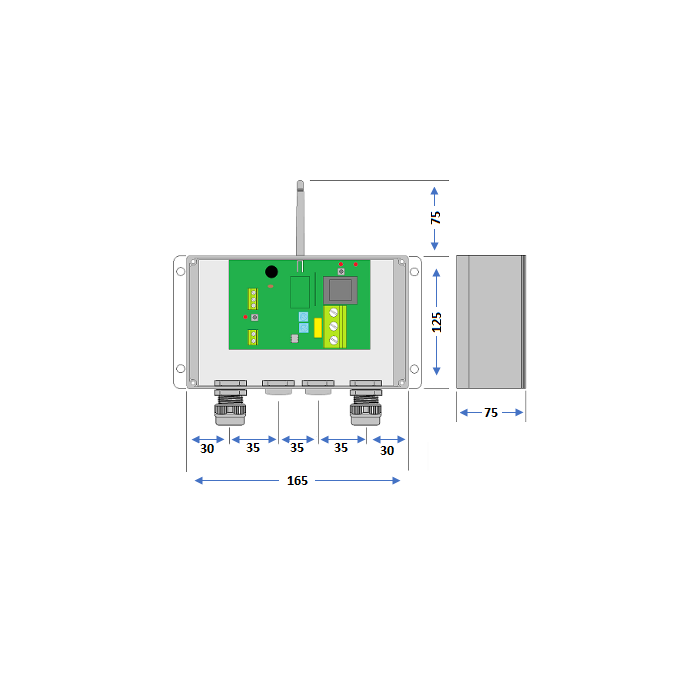

225 x 185 x 85mm |
Input: |
Isolated 12-230VAC/DC Trigger, 20mA |
|
Signal Repeater using 434.075MHz Narrow Band FM |
|
Security channels 1-16. |
|
Supply: 230VAC +/-10% 50Hz Standby 1W. |
|
EN220300, EN500811 To EN500821 |
