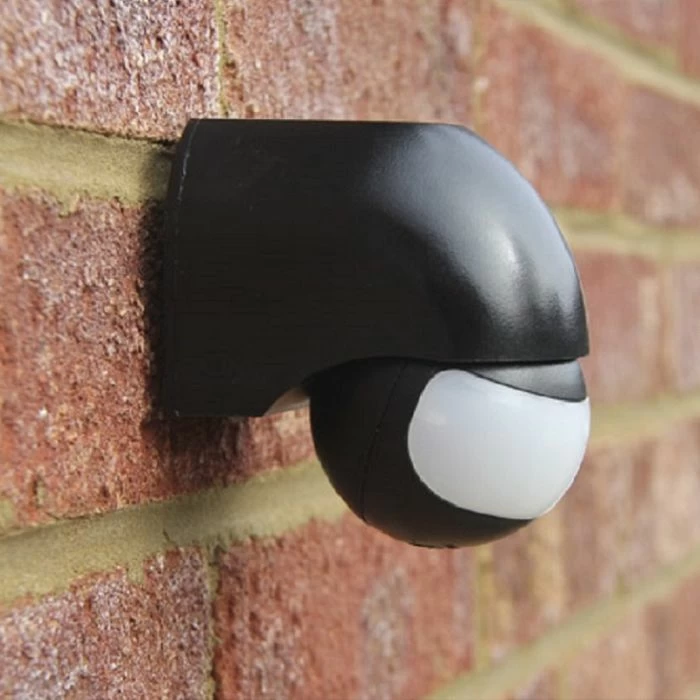

The Wireless PIR sensor can be programmed to trigger the whole garden or an individual area for a pre-set time. Any number of PIRs can be installed together and will not over-ride the user’s control or each other i.e. if the lights have been switched on manually, a triggered PIR will not switch them off again. It is mains powered for zero maintenance but transmits wirelessly to the Lighting Control Modules, base-station and signal repeaters. The PIR contains an adjustable ‘dusk’ sensor to prevent lighting triggers during the day.
|
The PIR is factory configured to trigger the whole garden, outputs 1 and 2 in the above example, but can easily be re-programmed to control a specific area, see Programming below. If a Lighting Control Module’s output is already on then the PIR is ignored, to prevent it over-riding the user’s control. Similarly, if more then one PIR is installed, the Lighting Control Modules always respond to the PIR triggered last, preventing conflict and incorrect timing. The trigger-time, PIR sensitivity and dusk-level can all be adjusted from the underside. |
|---|---|
|
1000 metre wireless range line-of-site |
Control: |
Timed trigger for whole-garden or a selected area (scene), without over-riding circuits which have been manually switched on |
|
75 x 115 x 110mm |
|
434.075MHz Narrow Band FM. |
|
Security channels 1-16. |
|
230VAC, |
|
EN220300, EN500811 To EN500821 |
