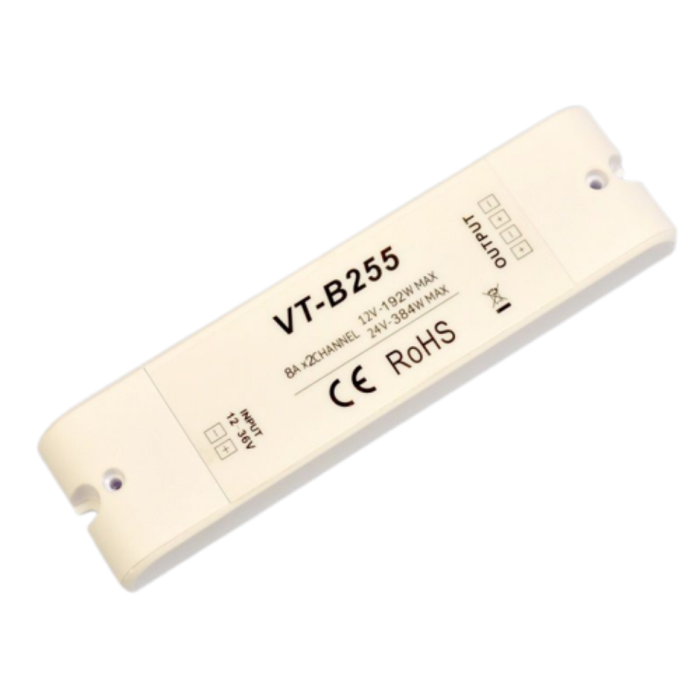

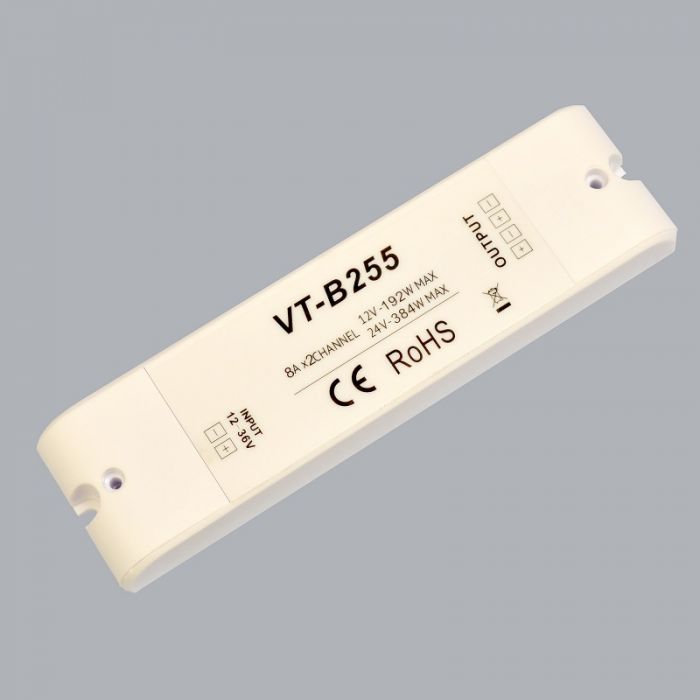

BV255 RF dimmer/receiver unit 12-36v. Generates 2 x stable outputs for dimming LED lamps and fittings. Designed for use only with BV206 (order separately)
Site the receiver unit in line after transformer and place inside an IP rated enclosure T9807 (order separately) 2 channels with 192 watts max total output (96 watts output per channel) when powered from a 12v power supply.
BV255 receiver unit does not work as a stand alone product – requires a power supply and BV206 2 zone remote handset.
Multiple BV255 dimmer/receivers can be operated by a single remote handset dimmer. BV255 can also be powered from a 24v power supply – max wattage 384w, or a 36v power supply – max wattage 576w.
|
White |
|---|---|
|
12v , 24v or 36V |
Wattage : |
12v=192w, 24v=384w and 36v=576w |
|
2x channels 96 watts per channel |
Dimming : |
Yes |
|
N/A |
