E8012 is a stylish 240v recessed light for illuminating steps or patios which can take a choice of GU10 3w or 5w led lamp. Order lamps separately. Smoothie is fitted with a frosted lens as standard to diffuse the lighting and hides the lamp from above when walking past. The light is located by an “O” ring on the body into a sleeve tube so that no external screw fixings are visible. Remember that recessed steplights are in effect recessed spotlights – avoid using them facing viewpoints.
|
316 grade stainless steel |
|---|---|
|
IP65 |
|

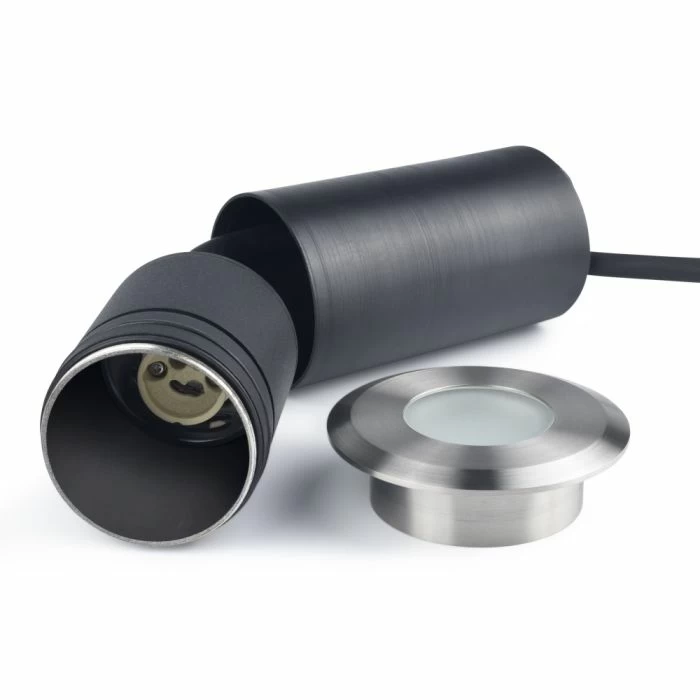

Front bezel is attached to tubular aluminium body which unscrews into 2 halves without tools for easy lamp changing. 2m cable via rear entry cable |
|
240v |
|
GU10 3w or 5w led lamps Order lamps separately |
|

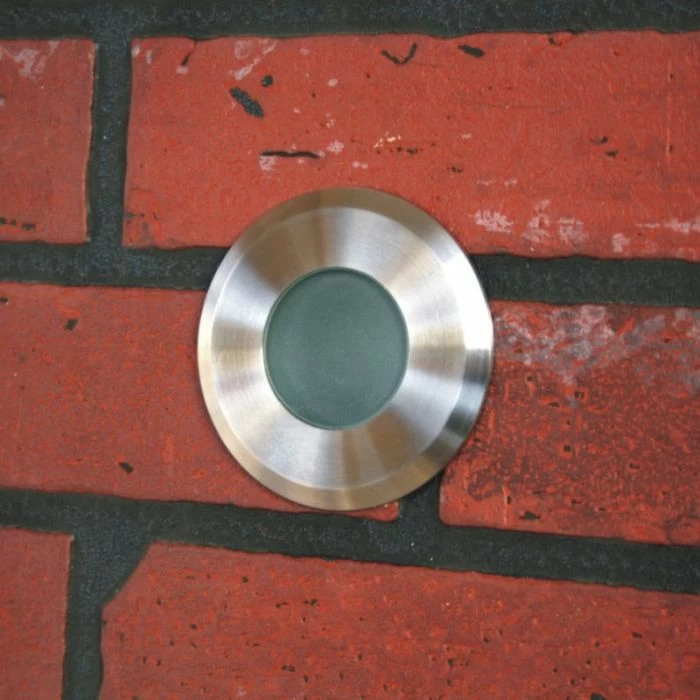

The plastic sleeve is built into the wall during construction: the light pushes into the tube, where it is held firmly in place by an o-ring, leaving a front plate with no visible fixing screws.
Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD. Where a garden lighting installation of more than 12 spike mount or recessed lights per circuit is proposed, we suggest the installation of 12v units with transformers, which results in a significantly higher fault tolerance and reliability in the total installation |
|
Clip-on Colour Filters & Lenses |
